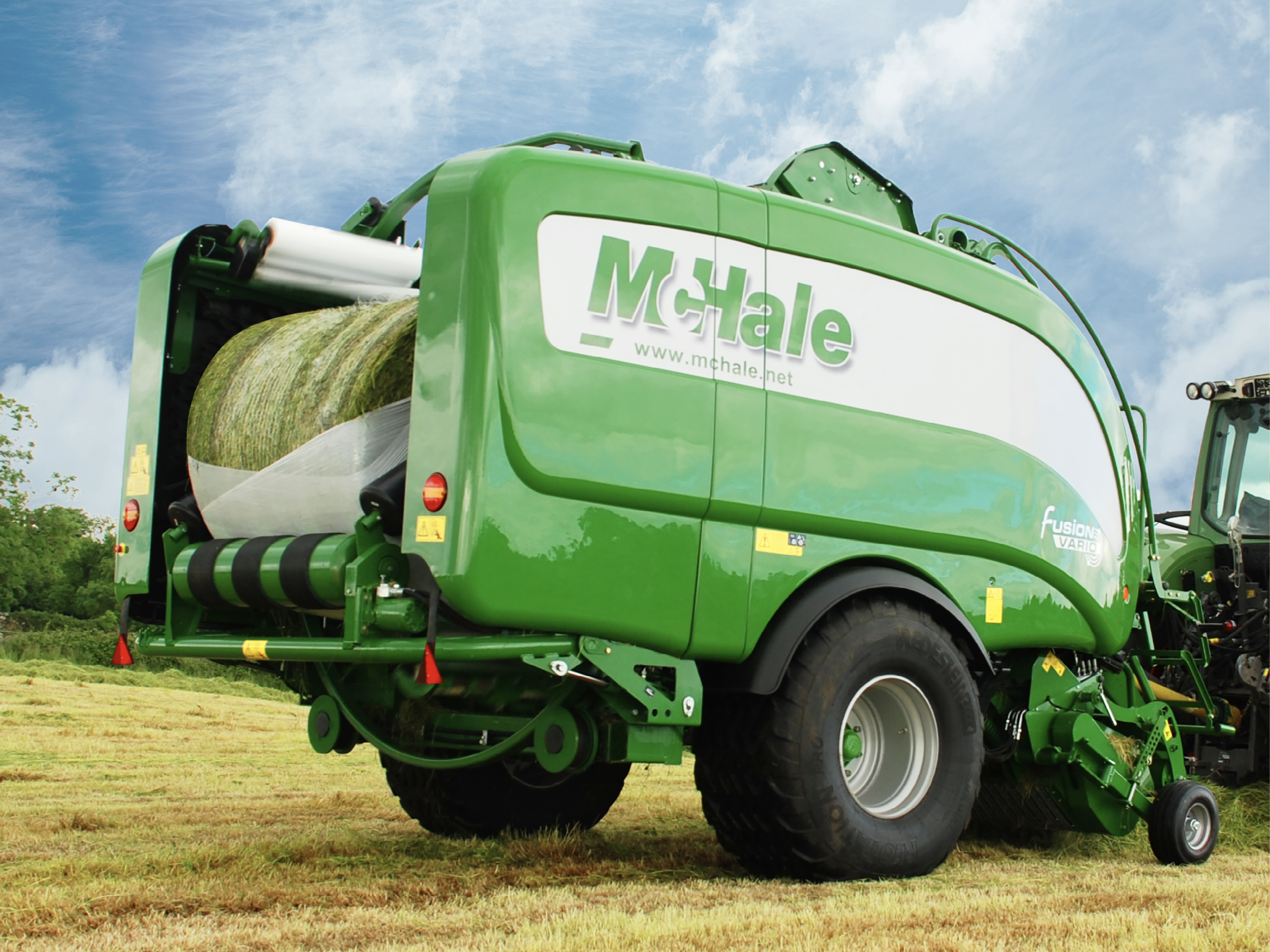

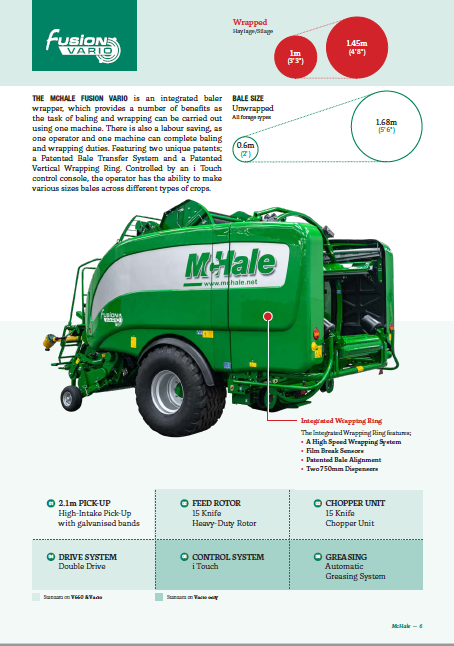

The McHale Fusion Vario is a fully integrated baler wrapper, which consists of a high output variable chamber baler with an integrated wrapping ring.
It can wrap the following bale types:
HAY/ STRAW The Fusion Vario has the ability to make bales of hay and straw from 0.6 metres up to 1.68 metres or from 2’ up to 5’ 6”.
HAYLAGE/ SILAGE The McHale Fusion Vario can also produce bales of haylage or silage from 1 metre up to 1.45 metres or 3’ 3” up to 4’ 8”.

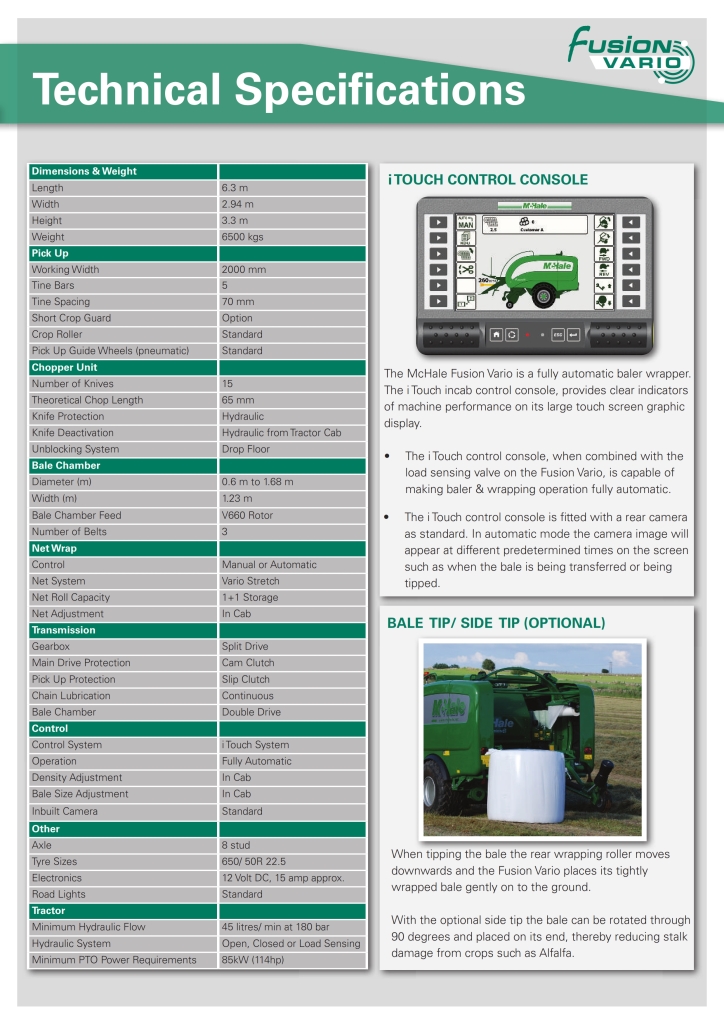

STANDARD SPECIFICATION
2 metre, five tine bar pick up
Crop roller
15 knife chopper system with heavy duty rotor
Drop floor unblocking system
Double drive variable bale chamber
Single belt bale chamber
Crop flow indicators
Patented bale transfer delivering higher output
High-speed vertical wrapping ring
iTouch control system
Inbuilt camera system
Fully automatic operation
Transfer System
McHALE PATENTED HIGH SPEED TRANSFER SYSTEM As the transfer cradle moves the bale towards the wrapping ring, the wrapping roller closest to the bale chamber pivots out of the way, which reduces the height the bale has to travel to get to the wrapper. This clever system saves time, as the patented system moves the bale quickly, ensuring the McHale Fusion Vario delivers the highest possible output.
McHALE PATENTED TIP ROLLER The McHale Fusion Vario can wrap bales from 1 metre up to 1.45 metres with ease. The patented tip roller adjusts its height in the line with bale size to ensure the plastic always goes onto the centre of the bale, regardless of the bale diameter. This ensures the correct overlap is always achieved.
Wrapping System
WRAPPING RING FEATURES
Two 750 mm dispensers
Film break sensors
Easy film loading
Reliable cut and hold, which gathers the plastic to one point
