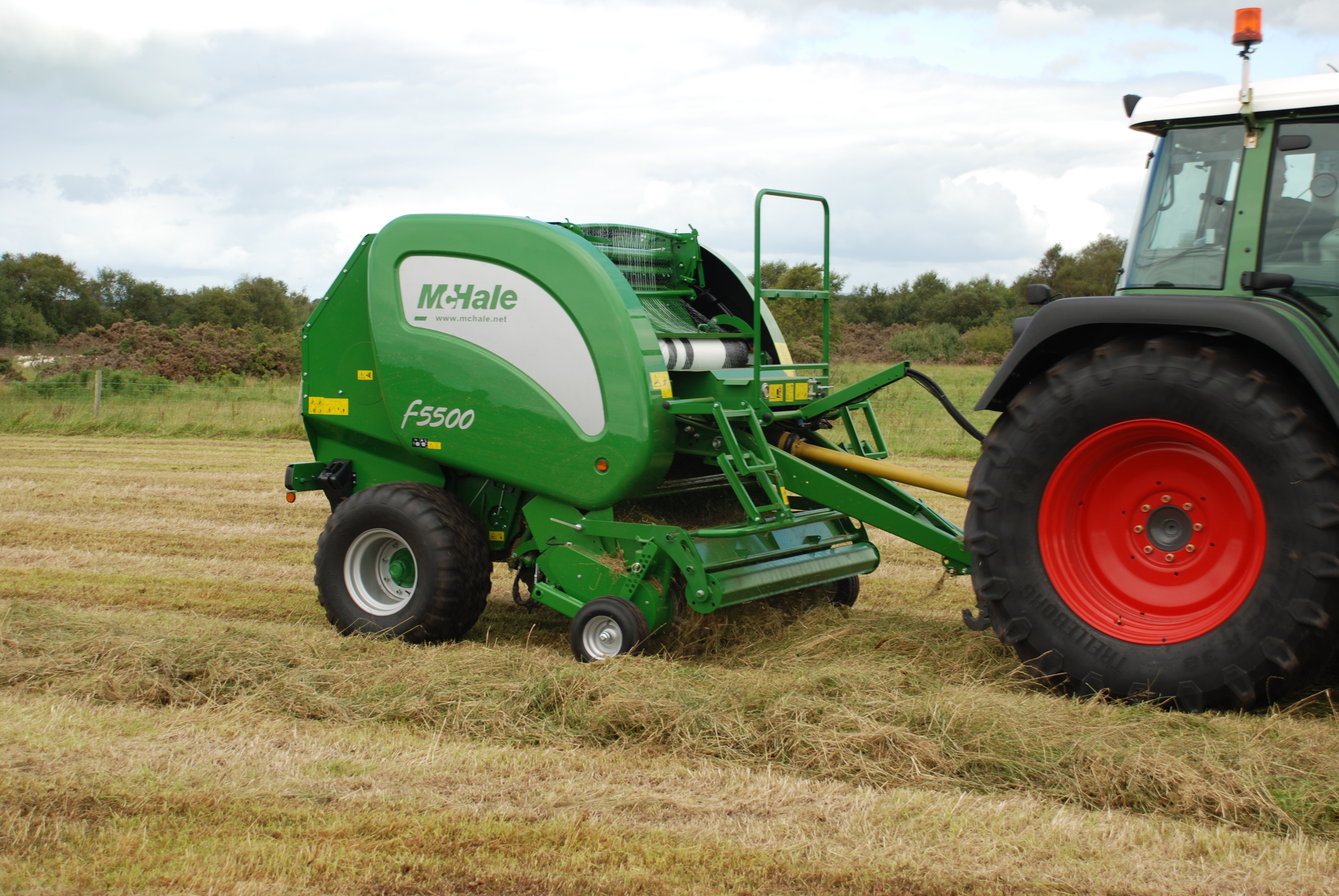

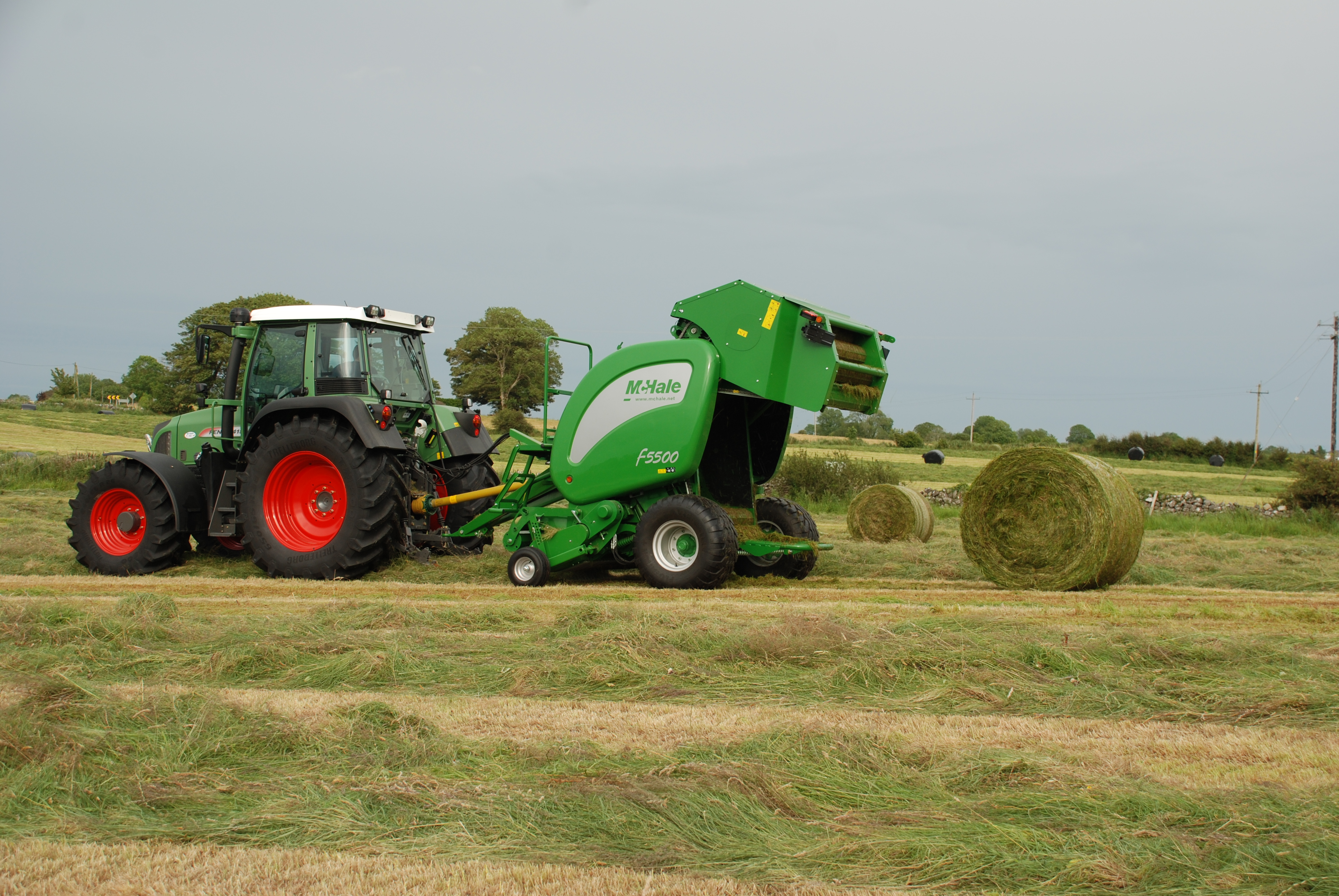

McHale F5500 Heavy Duty Fixed Chamber Baler - 15 Knife Chopper Unit and Drop Floor Unblocking System
As with all McHale machines, the McHale F5500 fixed chamber round baler has been designed with the demands of today's farmer and contractors in mind.
This common sense approach to design ensures that machine operation is kept simple and user friendly. Features like progressive greasing and oiling, and drop floor unblocking system, when combined with high specification components, ensure long life, reliability and a machine that is rugged enough to handle the toughest of crop and ground conditions.
• 2 metre pick up
• Drop floor unblocking system
• 15 knife chopper system
• Heavy duty rollers with a specifically designed sealing system
• High quality chains and bearings
• Progressive greasing and oiling
• User friendly electronics
Specifications
DIMENSIONS & WEIGHT |
Length |
4.05m |
Weight |
3500kg |
Height |
2.45m |
Width |
2.55/2.58m* |
|
|
PICK UP |
Pick Up Lift |
Hydraulic |
Crop Roller |
Optional |
Short Crop Guard |
Standard |
Tine spacing |
70mm |
Tine Bars |
5 |
Working Width |
2000mm |
Pick Up Guide Wheels |
Standard |
|
|

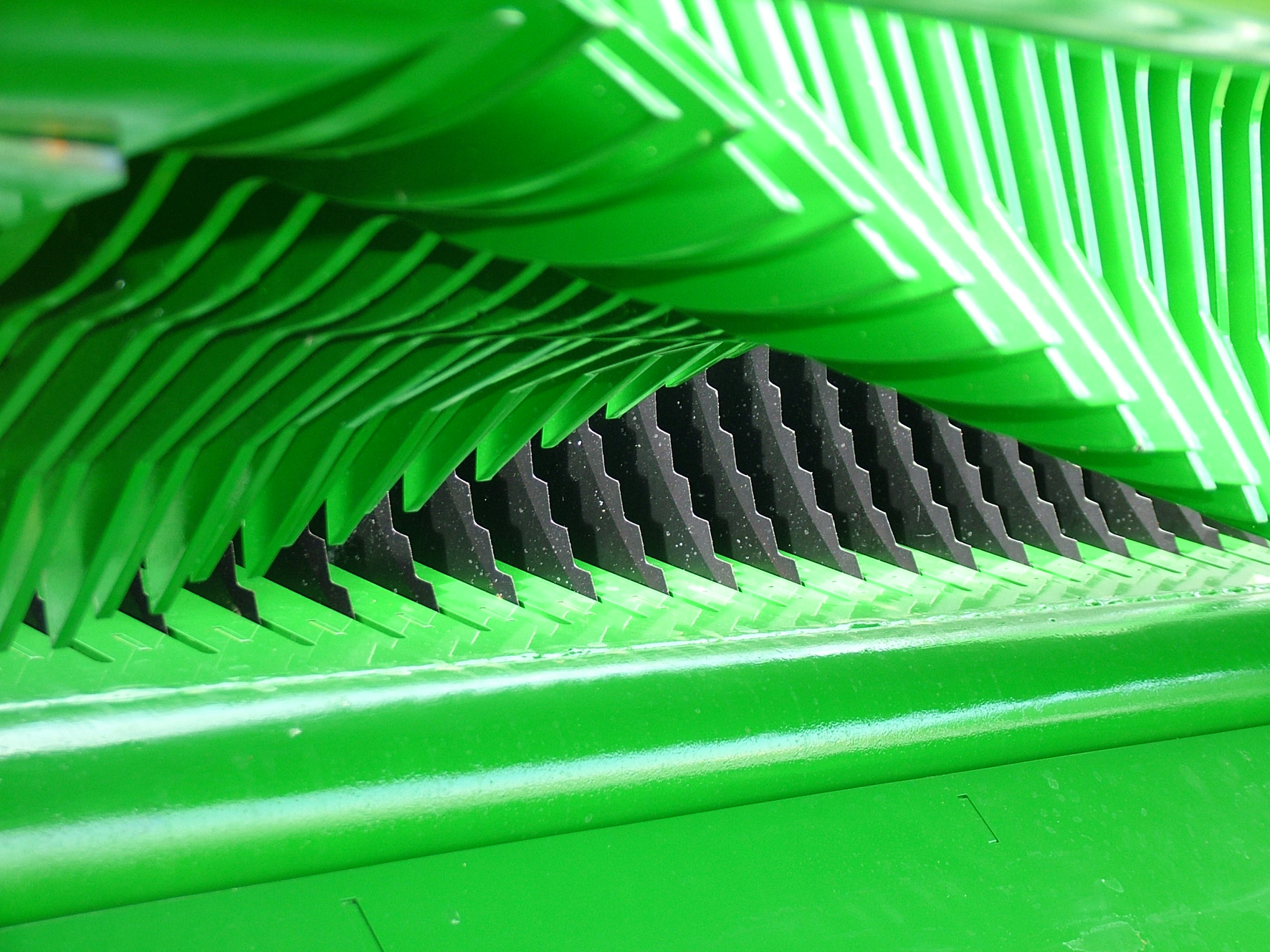

CHOPPER UNIT |
Knife Deactivation |
Hydraulic from Cab |
Knife Protection |
Hydraulic |
Theoretical Chop Length |
65mm |
Number of Knives |
15 |
Unblocking System |
Drop Floor |
|
|
BALE CHAMBER |
Greasing |
Automatic Progressive |
Bearings |
50mm** |
Number of Rollers |
18 |
Bale Chamber Feed |
Baler Rotor |
Width (m) |
1.23 |
Diameter (m) |
1.25 |
|
|
NET WRAP |
Net Adjustment |
Manual on Baler |
Net System |
Vario Stretch |
Net Roll Capacity |
1 + 1 Storage |
Control |
Manual or Automatic |
|
|
DRIVES |
Pick Up Protection |
Slip Clutch |
Main Drive Protection |
Cam Clutch |
Gearbox |
Split Drive |
Chain Lubrication |
Continuous |
|
|
CONTROL |
Density Adjustment |
On Baler Valve |
Operation |
Semi |
Control System |

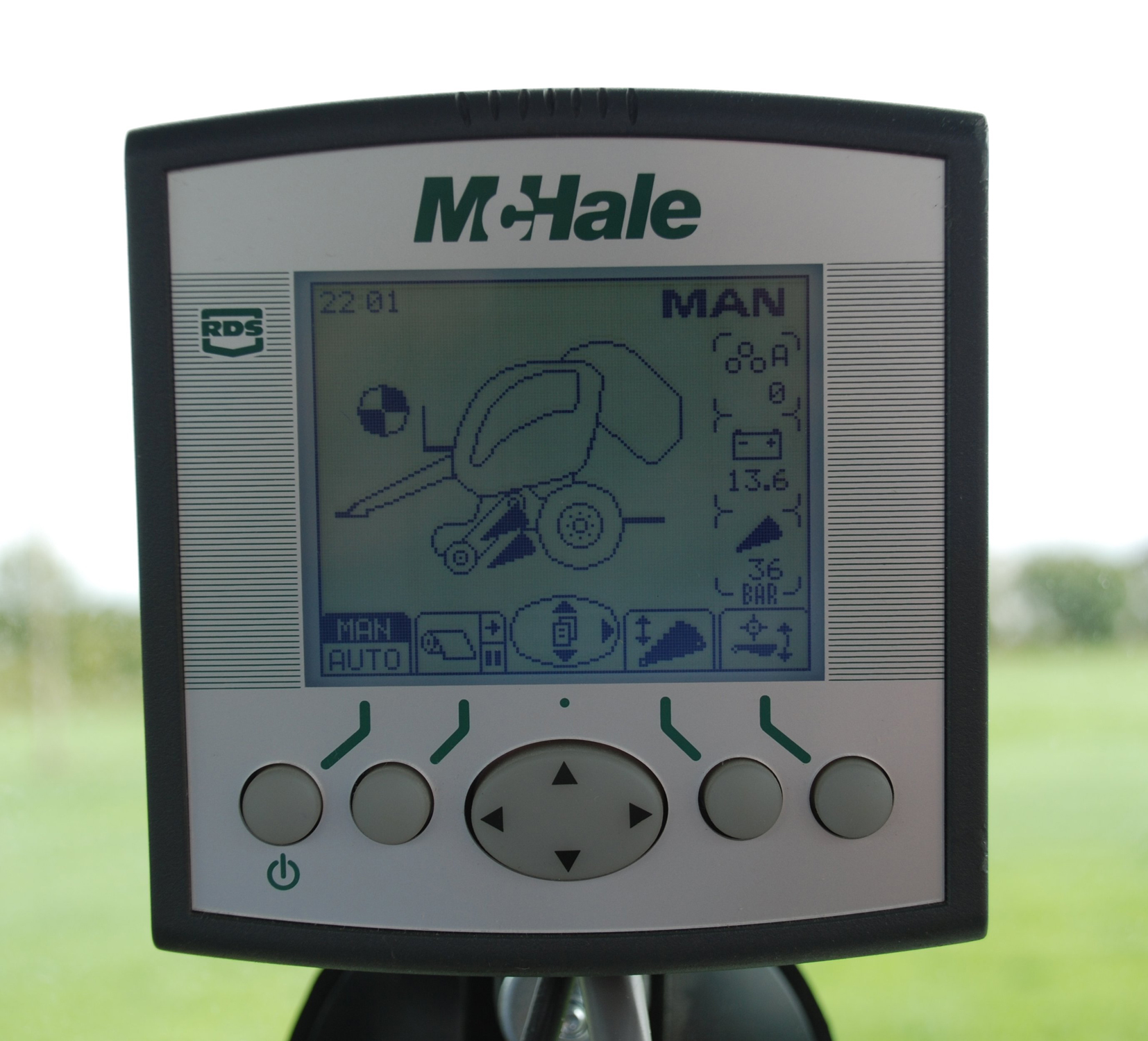

Wizard Plus |
|
|
OTHER |
Bale kicker Indicator |
Not Available |
Tyres Optional |
500/50 - 22.5 |
Tyres Standard |
500/50 - 17 |
Axle |
8 stud |
Road Lights |
Standard |
|
|
TRACTOR |
Hydraulics |
2 Double acting spools |
Minimum Power Requirement |
67kW (90hp) |
|
|
*Width will depend on tyre selection |
**Bearings are double raced on the main load points |
