MCHALE BALERS AND BALE WRAPPERS NEW ZEALAND

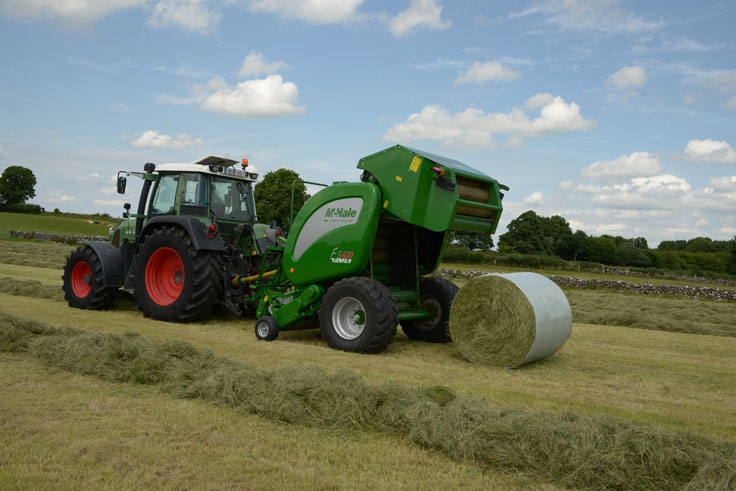

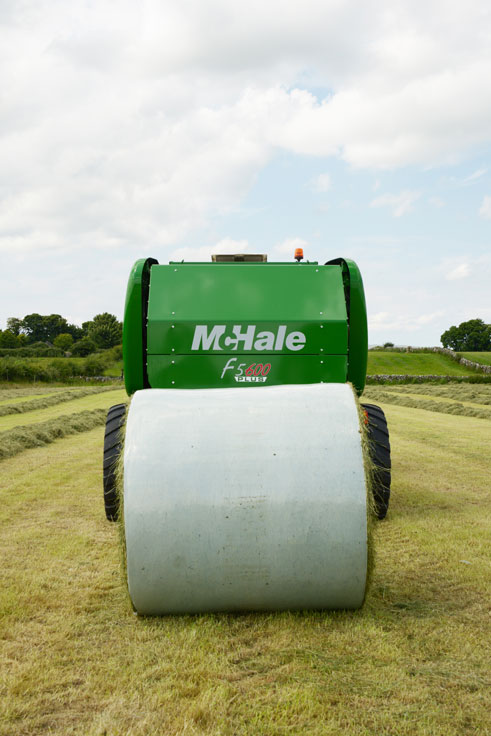

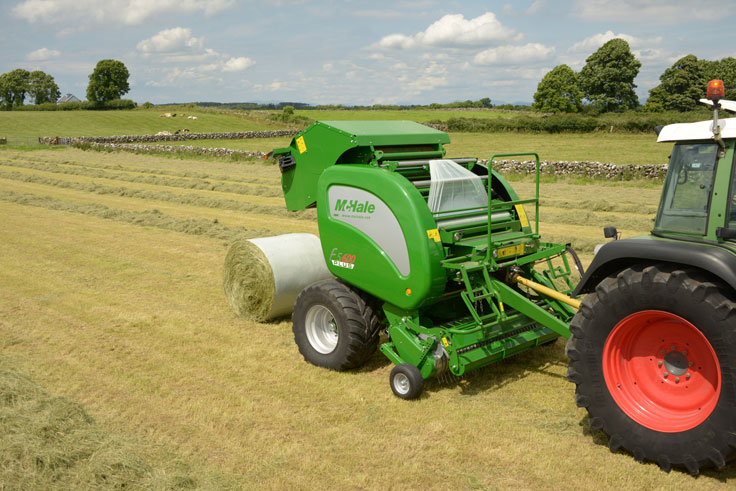

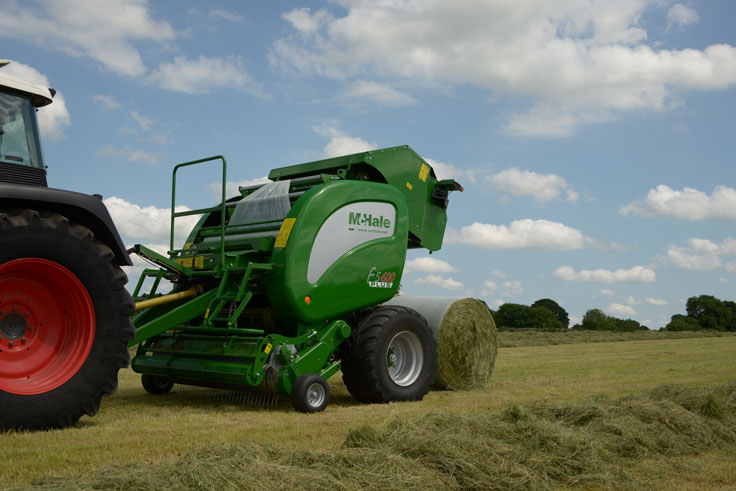

F5600 Plus- Film Binding Baler

The McHale F5600 PLUS is fitted with a servo operated load sensing control valve, which makes the baling process fully automatic. The machine is also equipped with a 25 knife chopping unit and an in chamber film bale binding system.

Features:

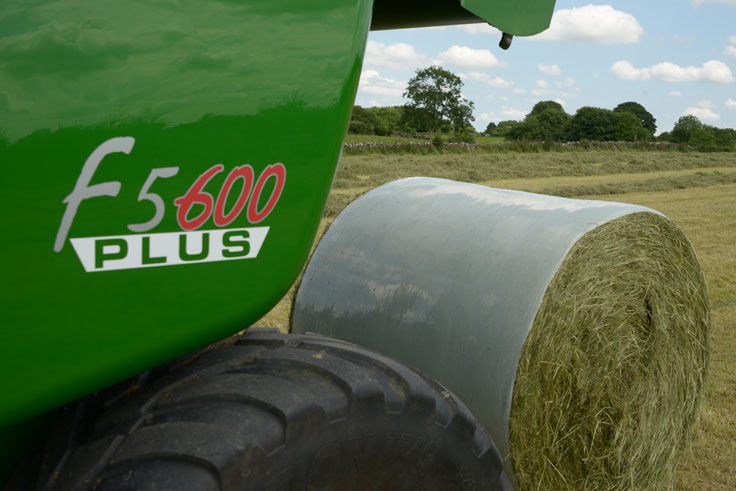

  • Film Binding Technology
  • Patented Film binding
  • Split Drive Gearboox
  • High Capacity Rotor & Chopper Unit
  • Progressive Greasing & Oiling
  • Automatic Tailgate Operation
  • Bale Kicker Sensor
  • Expert Plus Control Console
  • Net Wrap for Baling Hay & Straw.

Specifications

Dimensions & Weight



Width

2.58m

Length

4.05m

Weight

3850kg

Height

2.45m

Pick Up



Pick Up Lift

Hydraulic

Crop Roller

Optional

Short Crop Guard

Standard

Tine Spacing

70mm

Tine Bars

5

Working Width

2100mm

Pick Up Guide Wheels

Standard

Chopper Unit



Unblocking System

Drop Floor

Knife Deactivation

Hydraulic from Cab

Knife Protection

Hydraulic

Theoretical Chop Length

46mm

Number of Knives

25

Bale Chamber



Width(m)

1.23

Diameter(m)

1.25

Greasing

Automatic Progressive

Bearings

50mm

Number of Rollers

18

Bale Chamber Feed

Fusion Rotor

Net  Wrap



Net Adjustment

In Cab

Net Roll Capacity

1+1 Storage

Net System

Vario Stretch

Control

Manual or Automatic

Drives



Chain Lubrication

Continuous

Pick Up Protection

Slip Clutch

Main Drive Protection

Cam Clutch

Gearbox

Split Drive

Control



Density Adjustment

In Cab

Operation

Automatic

Control System

Expert  Plus

Other



Axle

8 Stud

Road Lights

Standard

Bale Kicker Indicator

Standard

Tyres Standard

500/50-22.5

Tractor



**Bearings are double on the main load points



Hydraulics

2 double acting spools

Minimum Power Requirements

75kW (100hp)
