McHale Orbital

A high speed solution which delivers consistent and even overlap and achieves optimum levels of fodder preservation and quality.

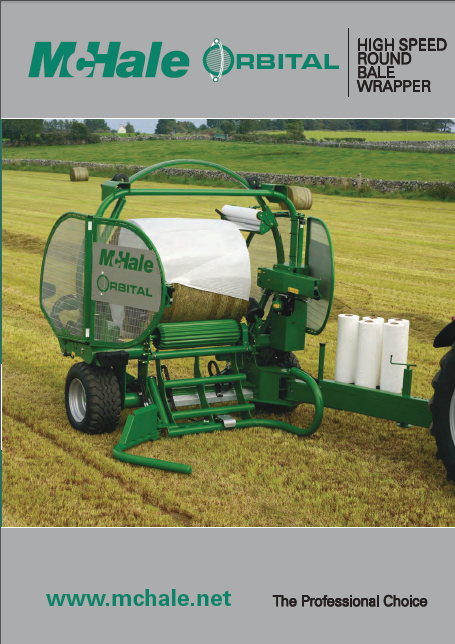

The McHale Orbital Bale Wrapper is a high speed round bale wrapper. The McHale Orbital harnesses the proven vertical
wrapping ring technology used in the McHale Fusion to deliver a high output, low maintenance bale wrapper which is
capable of keeping up with multiple balers.

Features:

  • Fully Automatic Operation
  • Patented High Speed Bale Loading
  • Patented High Speed Vertical Wrapping Ring
  • Wrap Bales from 3’ 3” to 4’ 8” (1m – 1.48m)
  • Proven and Reliable Cut and Hold System
  • Gentle Bale Tip after Wrapping
  • Film Break Sensors
  • Facility to Wrap with One Roll
  • Clever Film Loading
  • Expert Plus Control Box





Specifications

DIMENSIONS & WEIGHT
Length 4.35m
Width  2.74m
Height  3.00m
Weight  1850kg
 WRAPPING
 Dispenser Speed  40 RPM
 System  Vertical Wrapping Ring
 Film Storage  6 Rolls & 2 on the Dispensers
 Film Layers  2 + 2 + 2 System
Dispensers 70% x 750mm
Film Stretch 70% Standard (64% + 55% Optional)
CONTROL
Control System Expert Plus Control Console
Operation Fully Automatic
Bale Size Adjustment In-Cab
Wrapping Layer Adjustment In-Cab
OTHER
Axle 6 Stud
Tyre Sizes Standard: 380 / 55 / 17
Optional: 480 / 45 / 17
Electronics 12 Volt DC, 10 A euro socket approx. (min. specification)
Road Lights LED Lights – 12 V / 7-Pin Socket
TRACTOR
Attachment Pin Hitch
Minimum Hydraulic Flow 35 litres / min at 170 bar (2,465psi)
Hydraulic System Open, Closed or Load Sensing
Minimum HP Requirement 37kW / 50HP
